Class 10 Light: Reflection and Spherical Mirrors

0 of 12 answered0 correct
  1. 1
    Question 1

    A ray of light strikes a plane mirror at an angle of 30° to the normal. What is the angle between the incident ray and the reflected ray?

  2. 2
    Question 2

    Which set of properties describes the image formed by a plane mirror?

  3. 3
    Question 3

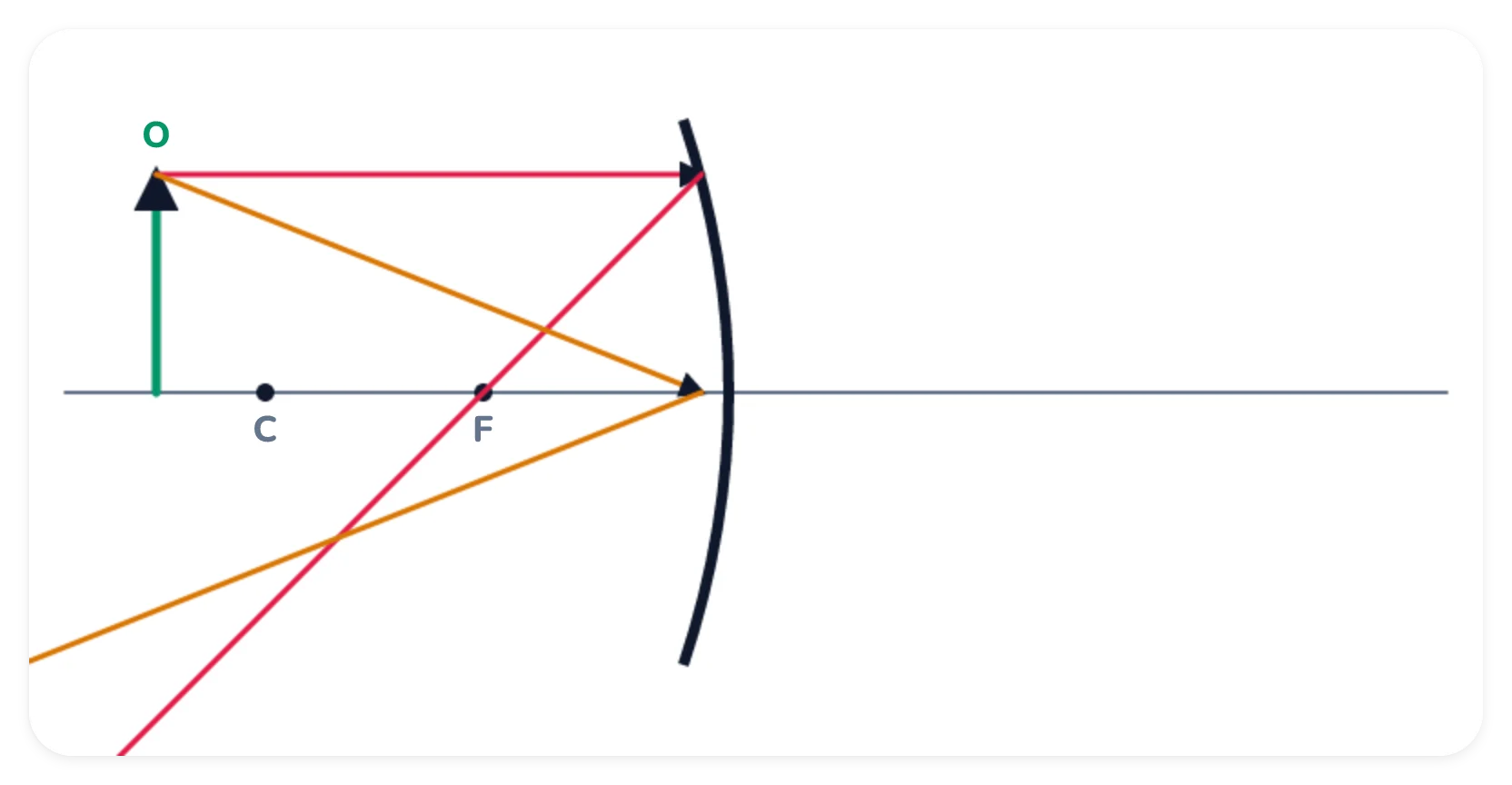

    The diagram shows an object placed beyond the centre of curvature C of a concave mirror. Where is the image formed, and what is it like?

    A concave mirror with its principal axis, the focus F and the centre of curvature C marked. An upright arrow object stands on the axis beyond C, with two principal rays drawn from its tip towards the mirror. No image is drawn.
  4. 4
    Question 4

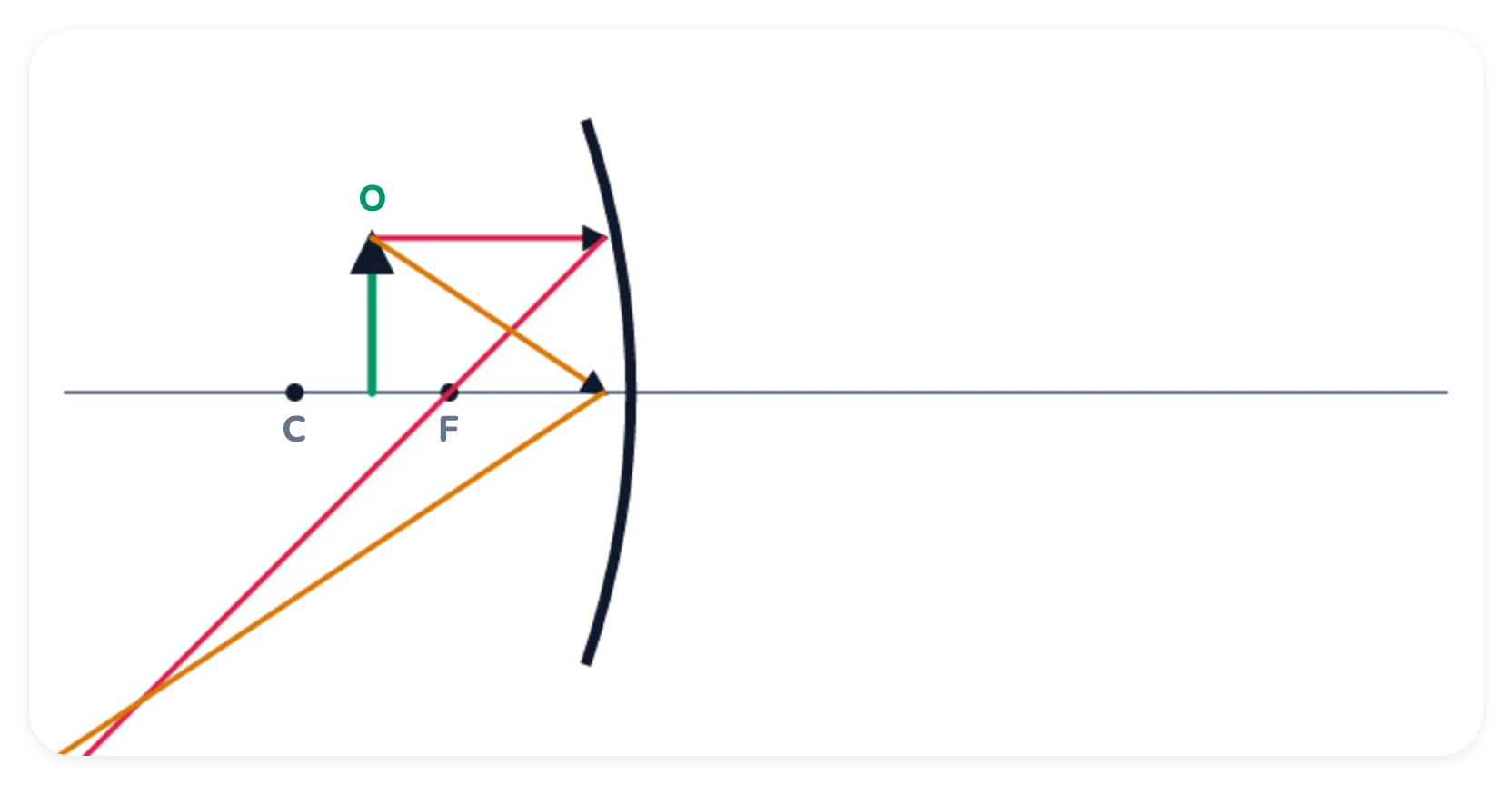

    The diagram shows an object placed between F and C in front of a concave mirror. Where is the image formed, and what is it like?

    A concave mirror with the principal axis, F and C marked. An upright arrow object stands between F and C, with two principal rays drawn from its tip. No image is drawn.
  5. 5
    Question 5

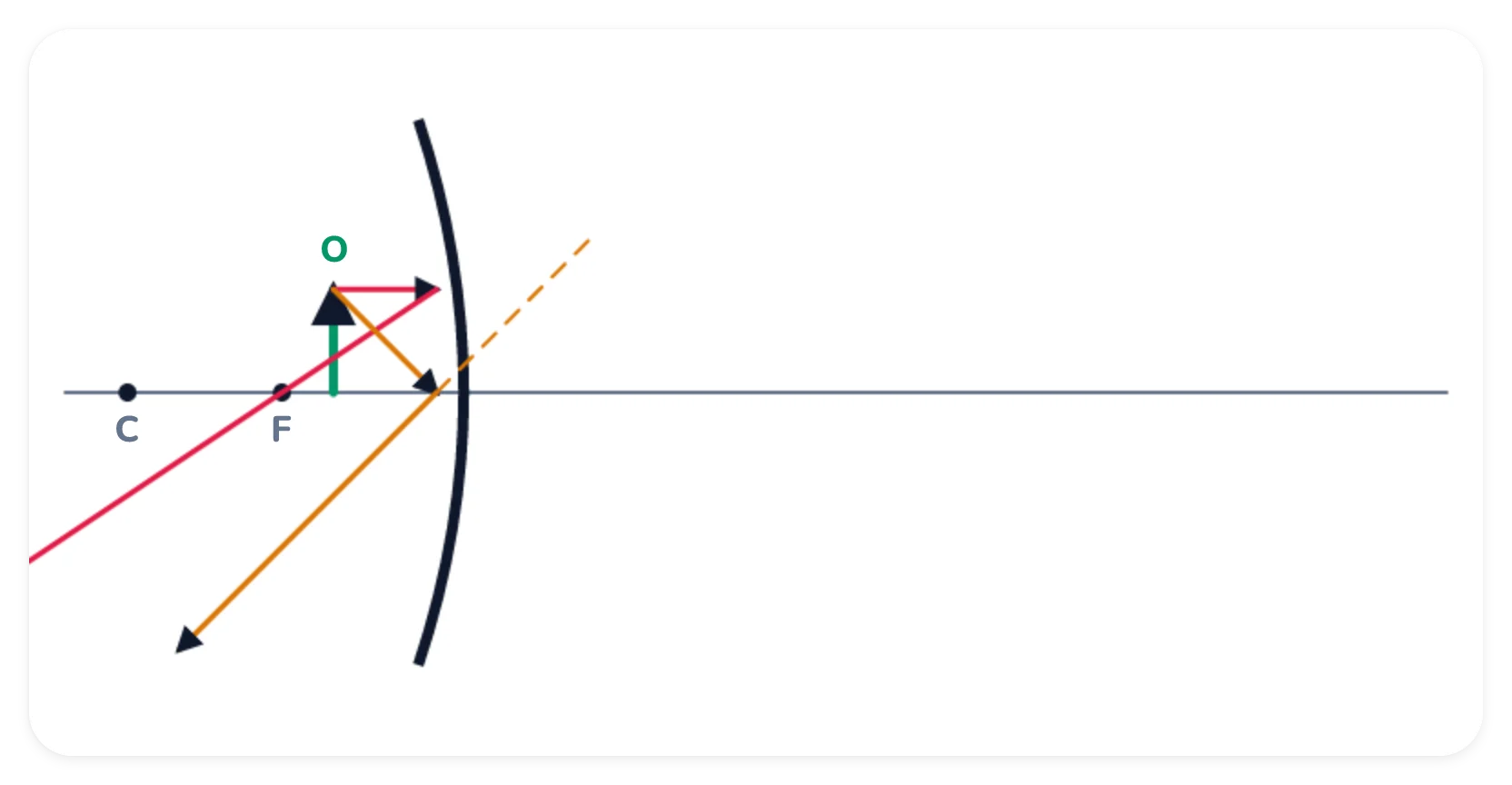

    The diagram shows an object placed between the pole P and the focus F of a concave mirror. Where is the image formed, and what is it like?

    A concave mirror with the principal axis, F and C marked. An upright arrow object stands close to the mirror, between the pole and F, with two principal rays drawn from its tip. No image is drawn.
  6. 6
    Question 6

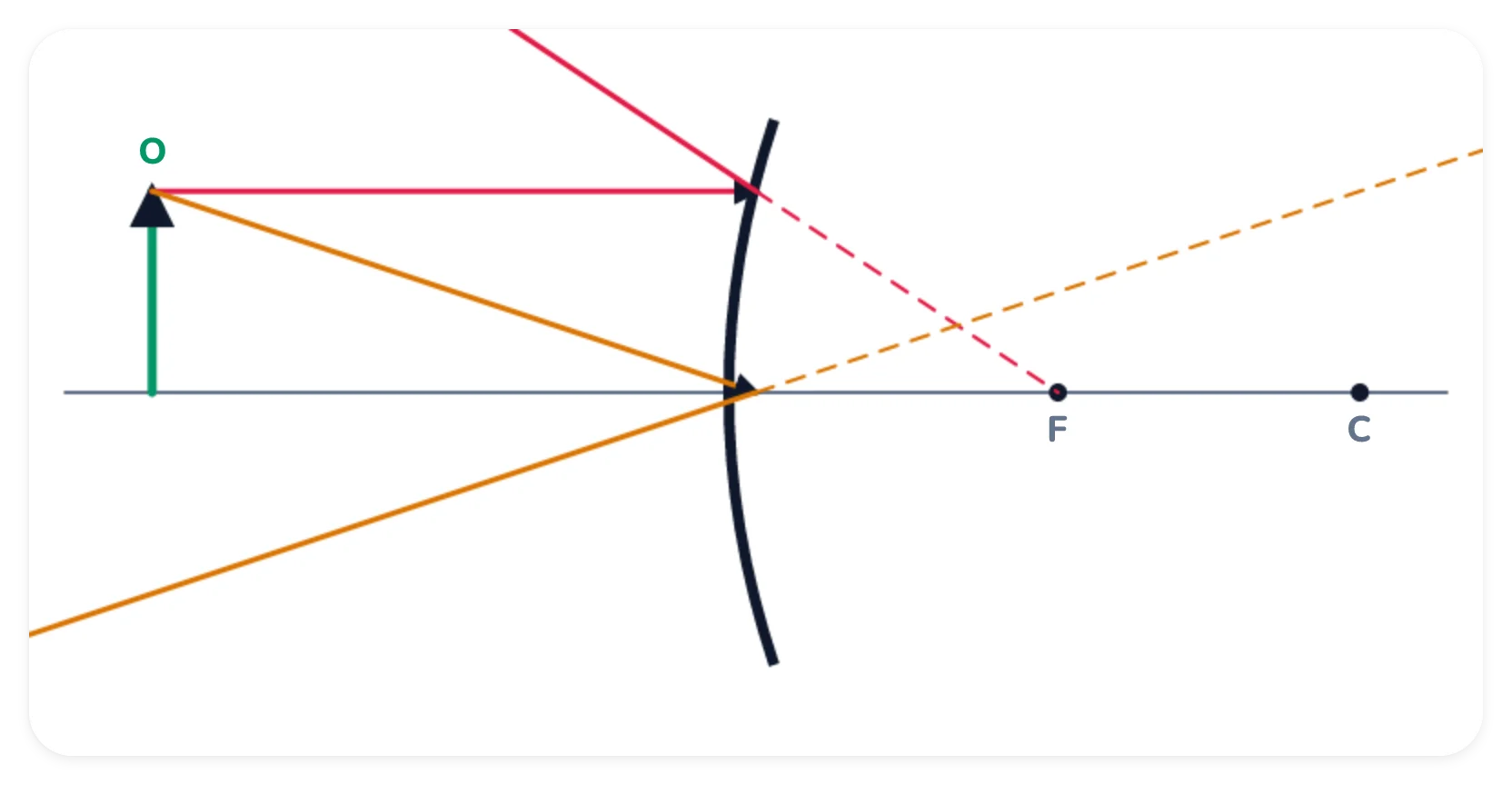

    The diagram shows an object in front of a convex mirror. Where is the image formed, and what is it like?

    A convex mirror with the principal axis and the focus F and centre of curvature C marked behind it. An upright arrow object stands in front of the mirror, with two principal rays drawn from its tip. No image is drawn.
  7. 7
    Question 7

    Why does a dentist use a concave mirror to examine teeth?

  8. 8
    Question 8

    Why are convex mirrors used as rear-view mirrors in vehicles?

  9. 9
    Question 9

    A spherical mirror has a radius of curvature of 30 cm. What is its focal length?

  10. 10
    Question 10

    According to the New Cartesian sign convention, the focal length of a concave mirror is taken as …

  11. 11
    Question 11

    An image formed by a concave mirror has a magnification of −2. What is the image like?

  12. 12
    Question 12

    What is the name of the straight line passing through the pole and the centre of curvature of a spherical mirror?
